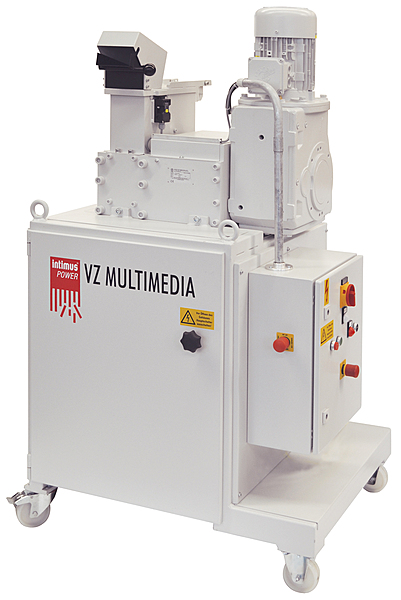

intimus VZ Multimedia

The solid and reliable industrial cutting unit with its powerful drive shreds large amounts of actually used HDD´s up to 3.5'' and also video cassettes, carbontapes, electronic circuit boards, CD-ROMs, DDS and DLT tapes to only 18.5 mm wide pieces. Fully automated control of all functions via a brand name PLC makes operation very simple and saves human resources. For most flexible use the VZ Multimedia is movable on castors, matches through standard doors and requires only 0.7 sqm space and a three-phase supply Cekon CEE 16A for operation.

Technical data:

• Cutting size paper (mm)18,5 mm
• Cutting size digital media (mm):18,5 mm
• Security level DIN 66 399O-1 / t-2 / H-4 / E-2
• Motor Power kW:3,0 kW
• Supply voltage (Volt):400 Volt
• Noise level (db (A)):82 db(A)
• Weight gross (kg):650 kg
• weight net (kg):540 kg
• Cutting zone (mm)150x400
• Actual through-put (kg/h):180 HDD/h
• Size (cm): Width 80, Depth 93, Height 65
