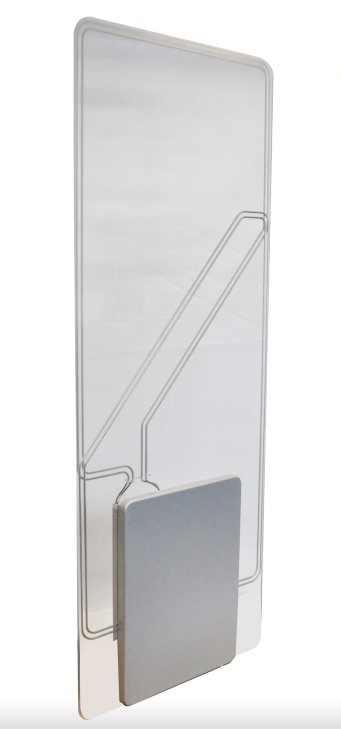

Smartgate™ 600

By increasing the width of the aisles, libraries create a more welcome and inviting entrance, easy for wheelchairs and strollers to pass through. Our extended width gate allows libraries to place pedestals up to 1.6 metres or 63 inches apart without compromising on tag detection rates.

Specifications:

• Dimensions (w x d x h): 70 (Max at base) x 700 x 1,798 (± 3) mm
• Weight: 29kg
• ​Materials: Transparent panel, aluminium white (RAL 9006) base
• Performance: Reads up to 8 tags per second in all 3 orientations. Optimal coverage is achieved within 1,600 mm / 63 inches of separation. Detection of items cannot be 100% guaranteed in any gate setup due to a range of factors. Detection range and rates will always be reduced for CD and DVD media that contains metallic elements. Libraries wishing to get as close to 100% detection as possible should work with the project team, but should expect distance between gates to be reduced.
• Alarm: Visual & audible
• Additional features: Integrated people counter, stnandby mode to reduce energy concumption
